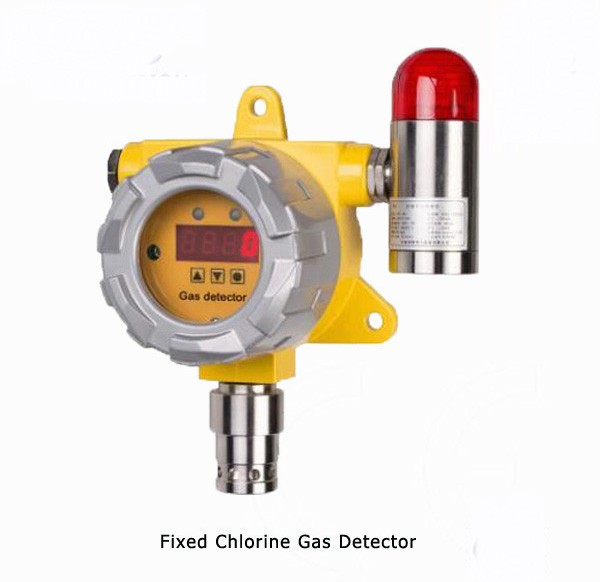

Baruch Industrial Online Fixed Chlorine Gas Detector (CL2)

Main Features:
Various kinds of gases detectors, high precision
Fixed explosion-proof shell, safe and reliable
4~20 mA electric current output(rs485 output optional), compatible with existing alarm unit or DCS ( distributed control system)
Imported sensor, sensitive, high precision, quick response, stable performance
Sipmple operation steps, easy to install and maintance
Detect and analyze gases concentrantion in remote places

single gas detectors

Technical Parameters

Detecting gasCL2
Measuring Range0-20ppm
Deviation≤± 3% F.S
Respond TimeT90 < 30 s
Working Temperaturetoxic gas: - 20 °C ~ + 50 °C
Working Humidity< 95% R.H. no condensation
Sensor electrochemical sensor
Sensor life2-5 year
Working Voltage24V DC±15%
Working Timecontinuously as long as power input
Protection ClassIP66
Weight≤900 g
Fixed parameterFixing type: wall-mounted type
Transition cable: two core shield cable
(KQ500-EX uses three core shield cable),
section 2×1.5mm2, external diameter 10mm
Transmission distance  ≤1000m
Technical parameterWorking voltage: 16~30VDC
Working current: KQ500-EX is 120mA, others ≤50 mA
Output signal: 4~20mA standard signal two wire type output
(KQ500-EX three wire type)
Explosion-proof LevelExd IICT6(used for explosion proofing detector);
ExiaIICT4(used for intrinsic safety type detector)

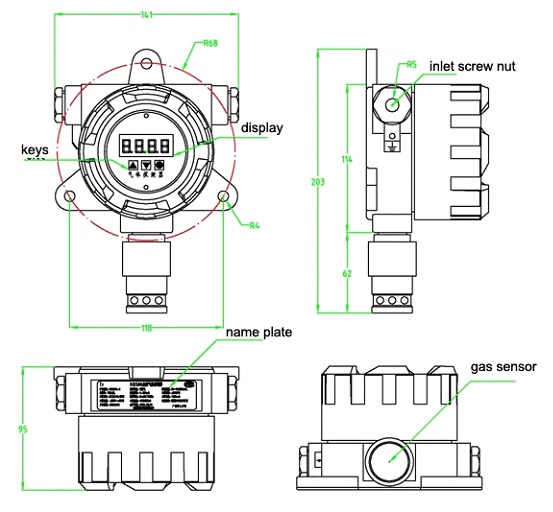

Product diagaram details

single gas detectors
